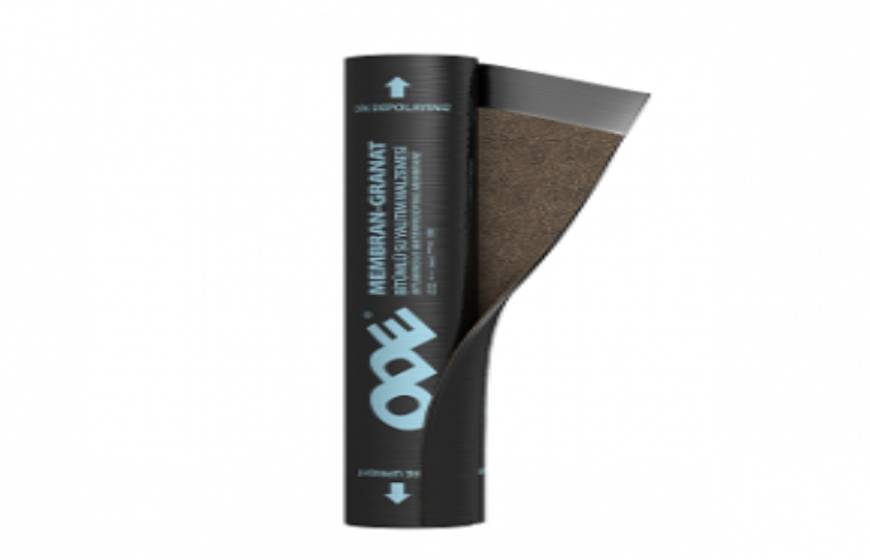

ODE Granat Viyadük Membran" is a long-lasting, APP-modified polymer-bitumen waterproofing membrane used in the waterproofing of viaducts, bridges, and railway decks, with its upper surface coated with silica sand.
It is resistant to the laying temperature of asphalt, which is 150°C.
The top surface is coated with silica sand with a special particle size for perfect adhesion with asphalt.
It has superior tensile strength compared to the targeted 1000/800 N/50 mm tensile strength with a high grammage non-woven polyester felt.
Considering the roughness of the bonding surface, the carrier felt is positioned on top, ensuring that the lower part in contact with the ground is thicker.
It complies with TS EN 14695 standard, has TSE 11758-1 document, and Karayolları Test Raporu.
It has a length of 10 m and a width of 1 m.
Applied as a single layer.
Technical Specifications Table
GRANAT GP400 VİA
GRANAT GP500 VİA
DEFINITION
Produced from APP-modified bitumen, this high-strength waterproofing membrane features a non-woven polyester felt reinforcement. It has a -10°C cold bending value, a top surface covered with special particle silica sand, and a bottom surface coated with PE film. Available in 4 mm and 5 mm thicknesses, it has a tensile strength of 1000/800 N/50 mm.
APPLICATION AREAS
It is used as a single-layer waterproofing membrane for viaducts, bridges, and railway decks. Asphalt or concrete can be poured directly on top without the need for a protective felt layer.
THICKNESS
4 mm
5 mm
DIMENSIONS
1x10
1x10
PALLET COVERAGE
230 m2
200 m2
Application Areas
Viyadük
Application Steps
ODE Bitumen Emulsion Primer is applied to the surface in accordance with the recipe. Before starting the membrane application, the primer should be allowed to dry for 1 day at 15-20 0C, or 2 days in colder weather. Application should not be made at temperatures below +5 0C and in rainy weather.
ODE RUBİN waterproofing membrane is applied from the lowest level by opening it perpendicular to the slope on terraces or sloping roofs. The membrane is overlapped lengthwise by 15 cm and widthwise by 10 cm. It is glued with a torch flame, as suggested in detail, only at the joints or by the full bonding method. It is applied with mechanical fixation on surfaces that do not allow torch application or in cases where precautions must be taken against wind load. After the first layer of covers is applied to the entire surface, staggering the transverse joints, the second layer of covers should be applied staggered to center the transverse and longitudinal joints of the first layer.
